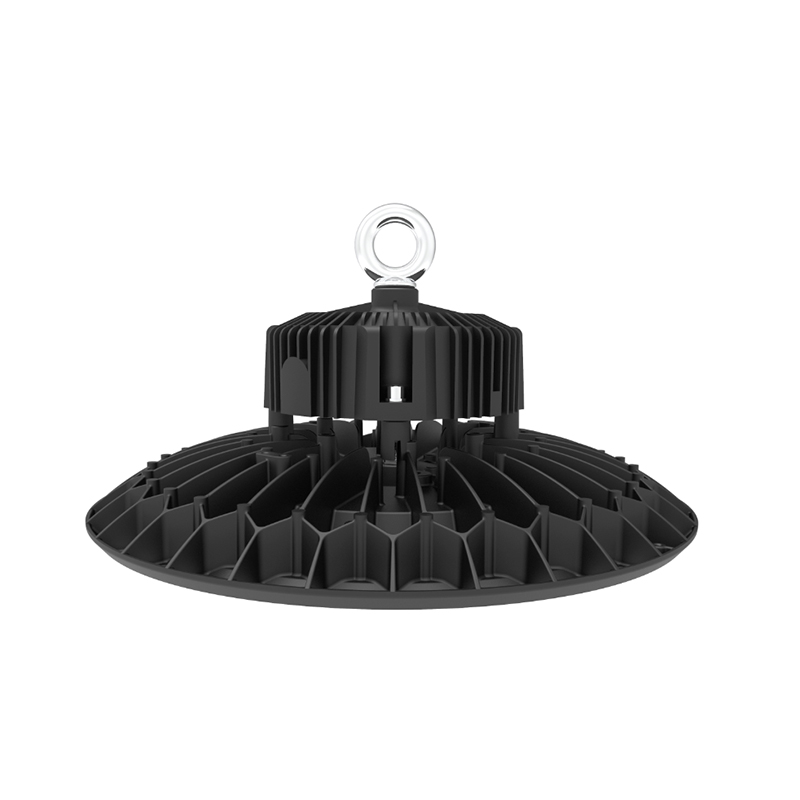

LED High Bay UFO Light

The LED high bay UFO light is luminum fins high thermal conductivity heat sink. LED UFO high bay light has aluminum die-casting shell integrated Meanwell drive power supply, high thermal conductivity aluminum substrate; UFO high bay light transmission PC plane sealing cover; multiple imported high-brightness 3030 chip, with hanging ring and wire rope double insurance installation parts.

Products Details

The UFO high bay have more than 90% light transmission PC lens, temperature resistance melting point of 135 °, total reflection design, the design of the high bay UFO lens in the front penetration of light gathering, while the tapered surface and can collect all the light from the side and reflect out, when the two kinds of light is overlapped after the use, you can get a perfect light spot effect. The general beam angle <60 °, can be used to small angle lamps and lanterns above, after irradiation without the presence of secondary light spot, the light shape is very beautiful.

The UFO LED high bay light 100W 150W and 200W are widely used in factories, warehouses, supermarkets, fruit stores and other large places that need high brightness lighting. UFO LED high bay can directly replace the traditional E40 lamp head interface lamps, convenient installation and maintenance. UFO high bay lighting can directly replace the traditional E40 interface lamp 400 watts, to reach a very energy-saving effect.

Model VKS-HB100W-B VKS-HB150W-B VKS-HB200W-B
Input Power 100W 150W 200W
Product Size(mm) 280*280*164.8mm 340*340*169mm 400*400*185.3mm
Input Voltage AC90-305V 50/60HZ
LED Type Lumileds(Philips) SMD 3030
Power Supply Meanwell/SOSEN/Inventronics driver
Efficacy(lm/W)±5% 130/140lm/W
Lumen Output±5% 13000LM 19500LM 26000LM
Beam Angle 60°/90°±10%
CCT (K) 4000K/5000K/5700K
CRI Ra70
IP Rate IP65
PF  ≥0.9
IK Grade IK07
THD <20%
Odd Harmonics IEC 61000-3-2 Class C
Start Time ≤0.5S (230V)
Flicker <8%
Warranty 5 years
QTY(PCS)/carton 1PCS 1PCS 1PCS
N.W.(KG/carton) 2.7 3.7 5
G.W.(KG/carton) 3.2 4.4 6
Packing Size 330*330*185mm 390*390*190mm 445*445*195mm
The LED UFO high bay shell adopts the surface classic powder spraying treatment, with electrostatic powder spraying equipment to spray powder coating to the surface of the workpiece, under the action of electrostatic, the powder will be uniformly adsorbed on the surface of the workpiece, forming a powder coating; powder coating after high temperature baking leveling curing, into the effect of different coatings; The high bay UFO lights' praying effect in mechanical strength, adhesion, corrosion resistance, aging resistance and other aspects better than the spray painting process.
